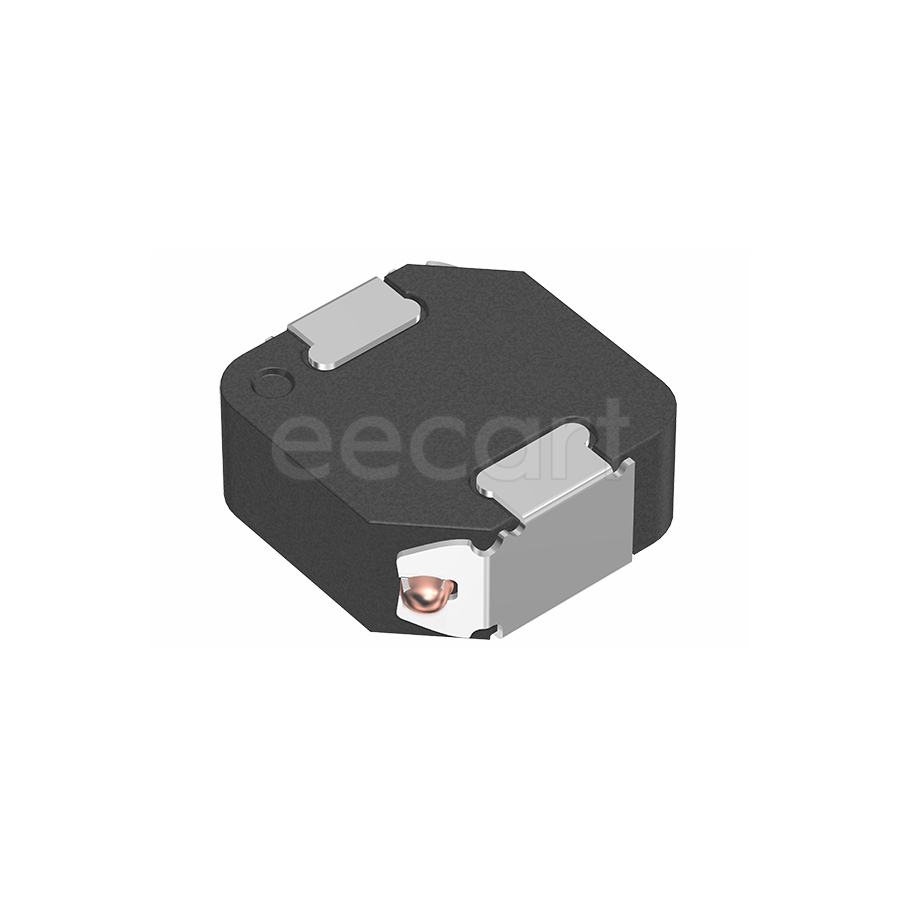

SPM6530T-4R7M
Manufacturer:
TDK Corporation
Mfr.Part #:
SPM6530T-4R7M
Datasheet:
Description:
Fixed Inductors SMD,7.10mm×6.50mm×3.00mm SMD/SMT 4.7 µH 20 % 5.6 A 39.4 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 3 mm |
| Length | 7.112 mm |
| Width | 6.5024 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Composition(Kit Type) | Wirewound |
| Height | 3 mm |
| Packaging | Reel |
| Depth | 6.8 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Current Rating | 5.6 A |
| DC Resistance (DCR) | 39.4 mΩ |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Shielding | Shielded |
| Inductance | 4.7 µH |
| Core Material | Metal |
| RMS Current (Irms) | 5.6 A |
| inductance tolerance | 20 % |
| Max DC Current | 5.6 A |
| DC Current | 5.6 A |
| Saturation Current | 6.2 A |
| Schedule B | 8504500000 |
| Type | Wirewound |
Stock: 380
Distributors
pcbx
pcbxUnit Price$0.15072
Ext.Price$0.15072
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.15072 | $0.15072 |
| 10 | $0.13335 | $1.33350 |
| 50 | $0.11798 | $5.89900 |
| 100 | $0.10486 | $10.48600 |
| 500 | $0.09320 | $46.60000 |
| 1000 | $0.08284 | $82.84000 |
| 3000 | $0.07666 | $229.98000 |
| 5000 | $0.07095 | $354.75000 |
